D1 & D3 Drag Knife for CNC Routers

D2 & D4 Drag Knife for CNC Routers

1/2" Drag knife for CNC Router
Our D1 & D3 Drag Knives are optimized for detailed work in thinner materials with a depth of cut from 0.254mm to 1.5mm thick. Curved cuts as small as 1.5875mm radius are possible with these tools.  The D1 fits in a 1/2in collet and the D3 fits in a 1/4in collet. Our D2 & D4 Drag Knives can handle thicker materials from 0.254mm up to 6.35mm thick. Curved cuts as small as 1/8 in. radius can be made with this tool. The D2 fits in a 1/2in collet and the D4 fits in a 1/4in collet. Our 1/2" Drag knife can handle thicker materials from 0.254mm up to 12.7mm (1/2 in.) thick. Curved cuts as small as108mm. radius can be made with this tool. The 1/2" knife fits in a 1/2in collet.

Add all items to the shopping cart
List Tiles
Standard Description Price Article number
Print

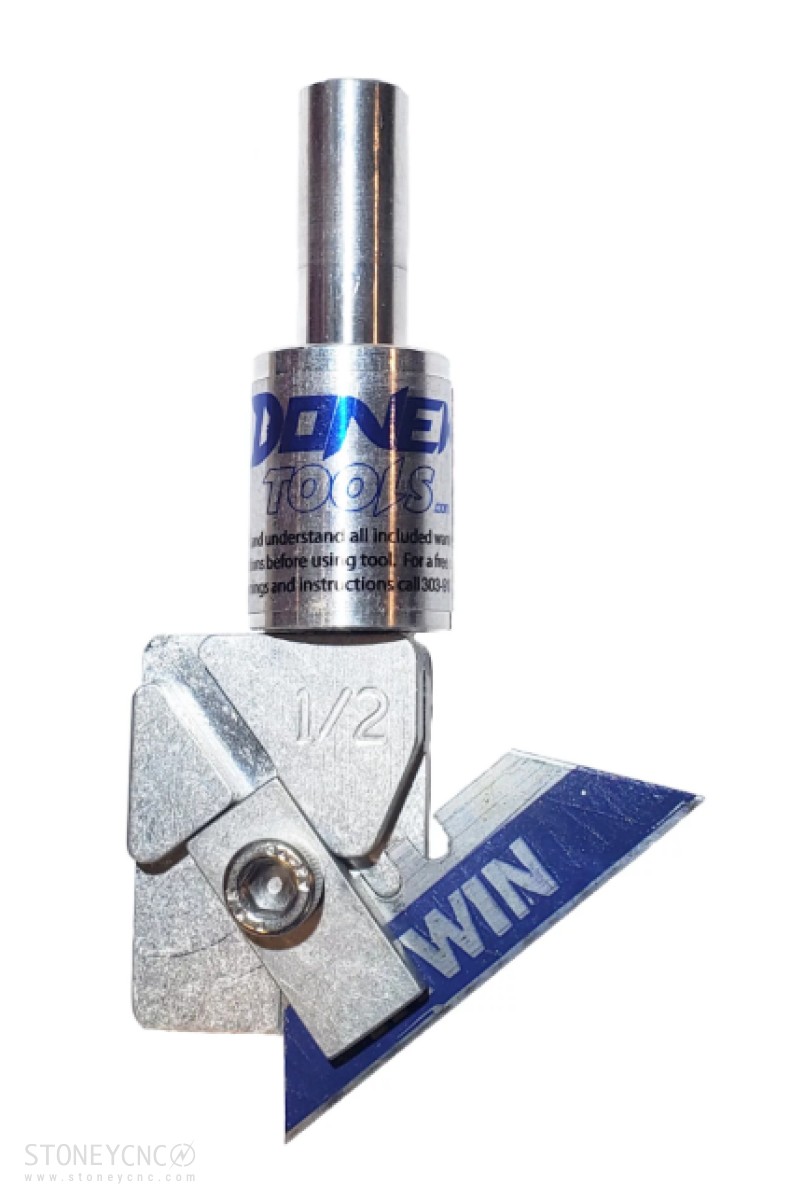

Donek 1/2 Dragknife - US - 8466.93.6000
Article number11971

Donek 1/2 Dragknife - US - 8466.93.6000

Cutting Direction
Straight
£269,14 Included 20% VAT £224,28 excl. VAT
Donek 1/2 Dragknife - US - 8466.93.6000
Add to cart
Click here for more details

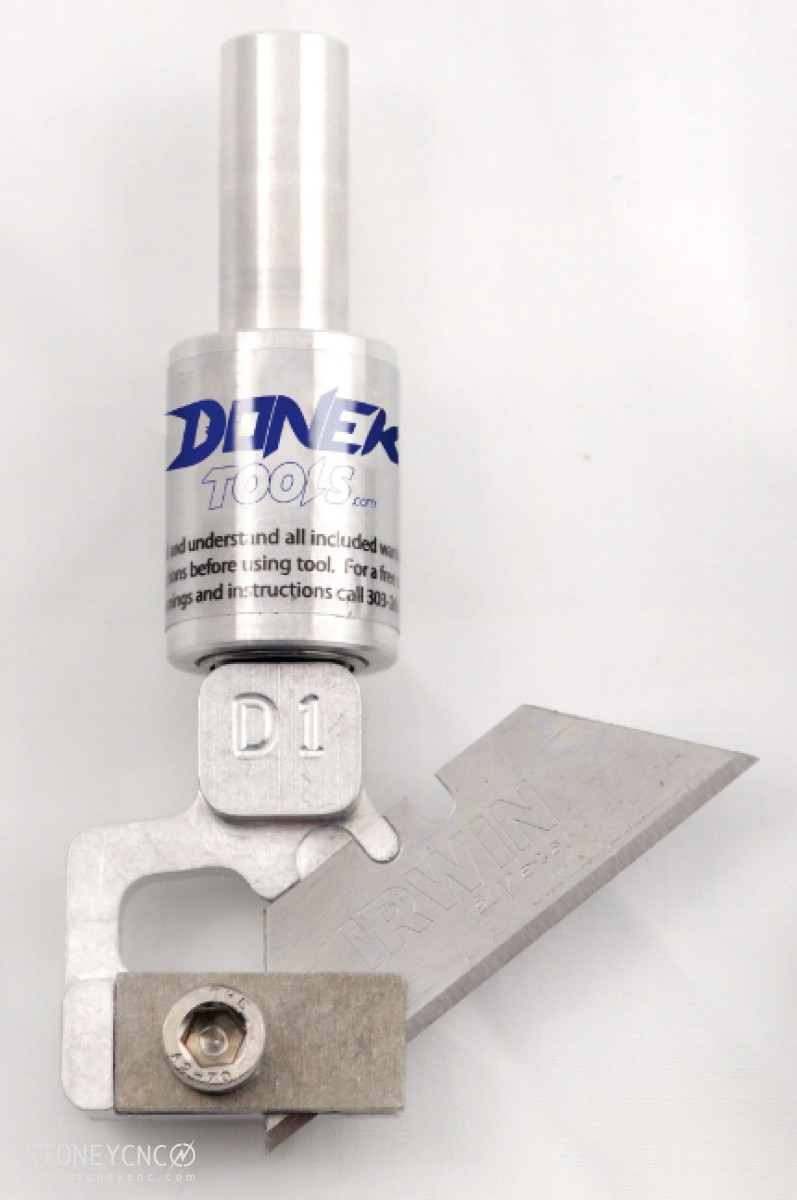

Donek D1 dragknife - US - 8466.93.6000
Article number10240

Donek D1 dragknife - US - 8466.93.6000

Cutting Direction
Straight
£269,14 Included 20% VAT £224,28 excl. VAT
Donek D1 dragknife - US - 8466.93.6000
Add to cart
Click here for more details
Donek D2 dragknife - US - 8466.93.6000
Article number10241

Donek D2 dragknife - US - 8466.93.6000

Cutting Direction
Straight
£269,14 Included 20% VAT £224,28 excl. VAT
Donek D2 dragknife - US - 8466.93.6000
Add to cart
Click here for more details
Donek D3 dragknife - US - 8466.93.6000
Article number10242

Donek D3 dragknife - US - 8466.93.6000

Cutting Direction
Straight
£269,14 Included 20% VAT £224,28 excl. VAT
Donek D3 dragknife - US - 8466.93.6000
Add to cart
Click here for more details
Donek D4 dragknife - US - 8466.93.6000
Article number10243

Donek D4 dragknife - US - 8466.93.6000

Cutting Direction
Straight
£269,14 Included 20% VAT £224,28 excl. VAT
Donek D4 dragknife - US - 8466.93.6000
Add to cart
Click here for more details
Donek Creasing Attachment - US - 8466.93.6000
Article number10244

Donek Creasing Attachment - US - 8466.93.6000

£131,81 Included 20% VAT £109,84 excl. VAT
Donek Creasing Attachment - US - 8466.93.6000
Add to cart
Click here for more details
Model: D1 D2 D3 D4 1/2" Creaser
Collet Size: 1/2in 1/2in 1/4in 1/4in 1/2in NA
Maximum Depth of Cut: 1/16in 1/4in 1/16in 1/4in 1/2in NA
Minimum Cut Radius: 1/16in 1/8in* 1/16in 1/8in* 4.25in NA
Approximate** Offset Value: 0.065in
(1.65mm)		 0.16in
(4.0mm)		 0.065in
(1.65mm)		 0.16in
(4.0mm)		 .25 in
(6.39mm)		 0.8in
(20.3mm)

* If you are cutting material thicker than 1/8in, the minimum cut radius on the D2 or D4 increases to the material thickness

** Offset values are approximate because results may vary from machine to machine and material to material. In general, if your blade is overturning at corners, reduce the offset. If it is under turning, increase the offset.
